Pedal Box


  • Please log in to reply
5 replies to this topic

#1 venkman

venkman

    Speeding Along Now

  • Members
  • PipPipPipPipPip
  • 424 posts
  • Location: Glusburn

Posted 14 May 2020 - 06:00 PM

Hello people,

I've stripped my mini for a restoration, I'm now starting to put things back together here lies my problem.

The pedal box, does it mount on the dash rail or underneath it, has anyone a picture with the bits fitted. Thought I would remember!!

There is 3 pieces I'm struggling with, the pedal box,a yellow rectangular piece, possibly a vibration washer and a long slim rectangular piece with 2 captive nuts.

Thanks Ian

#2 alex-95

alex-95

    I am THE CLAMP MAKER

  • TMF+ Member
  • PipPipPipPipPipPipPipPipPipPip
  • 5,736 posts
  • Location: Cornwall

Posted 14 May 2020 - 06:03 PM

The bit with captive nuts goes on top of the dash rail, pedal box goes underneath, yellow bit goes on the pedal box with the bump facing up which goes to one captive nut and the washer to the other captive nut.



CAn't find a picture >_<


Edited by alex-95, 14 May 2020 - 06:32 PM.


#3 venkman

venkman

    Speeding Along Now

  • Members
  • PipPipPipPipPip
  • 424 posts
  • Location: Glusburn

Posted 14 May 2020 - 06:18 PM

The bit with captive nuts goes on top of the dash rail, pedal box goes underneath, yellow bit goes between the pedal box and dash rail on one captive nut and the washer on the other captive nut.

CAn't find a picture >_<


Cool cool

Thanks for that, that's clear enough for me to sort out

Cheers

#4 alex-95

alex-95

    I am THE CLAMP MAKER

  • TMF+ Member
  • PipPipPipPipPipPipPipPipPipPip
  • 5,736 posts
  • Location: Cornwall

Posted 14 May 2020 - 06:25 PM



The bit with captive nuts goes on top of the dash rail, pedal box goes underneath, yellow bit goes between the pedal box and dash rail on one captive nut and the washer on the other captive nut.

CAn't find a picture >_<


Cool cool

Thanks for that, that's clear enough for me to sort out

Cheers

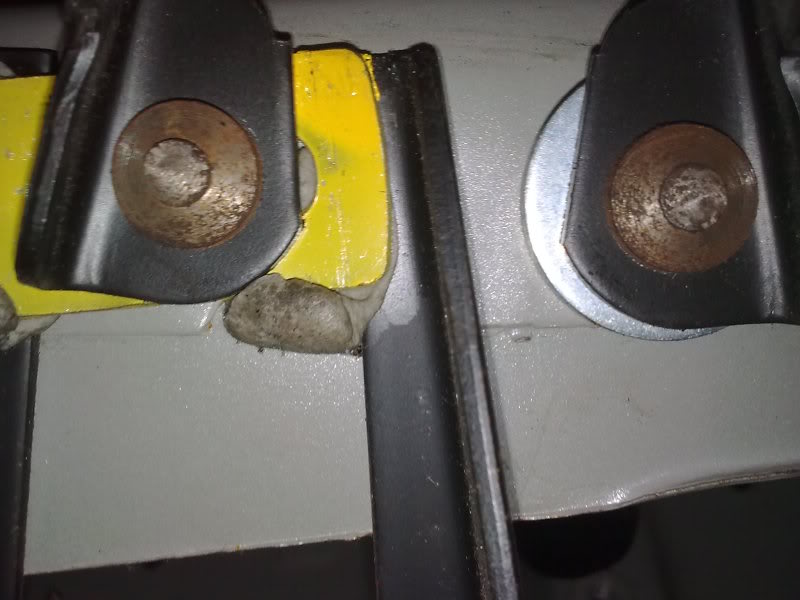

Oh no wait!!! :lol:  pedal box against the dash rail and then the yellow bracket on top.nQ6oo3N.jpg



2734012dc7cb500a3787af6a0423f44f7cc012ca


Edited by alex-95, 14 May 2020 - 06:33 PM.


#5 venkman

venkman

    Speeding Along Now

  • Members
  • PipPipPipPipPip
  • 424 posts
  • Location: Glusburn

Posted 14 May 2020 - 06:36 PM

The bit with captive nuts goes on top of the dash rail, pedal box goes underneath, yellow bit goes between the pedal box and dash rail on one captive nut and the washer on the other captive nut.

CAn't find a picture >_<


Cool cool

Thanks for that, that's clear enough for me to sort out

Cheers
Oh no wait!!! :lol:  pedal box against the dash rail and then the yellow bracket on top.nQ6oo3N.jpg

2734012dc7cb500a3787af6a0423f44f7cc012ca

That's excellent!! Obviously the long rectangular piece is on top of it all as a strengthener holding it all together.

Appreciate the picture

#6 Moke Spider

Moke Spider

    Crazy About Mini's

  • TMF Team
  • PipPipPipPipPipPipPipPipPipPip
  • 9,995 posts
  • Location: NSW
  • Local Club: South Australian Moke Club

Posted 14 May 2020 - 07:19 PM

I've just changed the title here to better reflect the subject.
