7 replies to this topic

[stormintrooper]

as said in the description..i would like to know what wires should be coming in and out of the fuse box and what they are please as i changed the fuse box the other day and there was a rather bad mess of extra wires going into it.....some looked like new but dont want to touch them as theres always the chance someone someone has simply put a new spade on the end and end up removing something vital

hope you can help me please as i'd like to remove and re-wire all the non standard wiring in the mini as the previous owner wasnt a tidy one

[Dan]

Like this. Where there are two of the same colour, they go to the same terminal.

OK, I really don't understand why sometimes an attachment will appear in the text and sometimes there is only a link to it. Ah well, I suppose you can click on it.

Attached Files

•  scan0001.bmp   75.58K   51 downloads

Edited by Dan, 04 January 2009 - 12:22 AM.

[stormintrooper]

what colour does N represent? so all in all theyre should be 8 and only 8 wires as standard...or do some terminals have more than one wire as standard...thanks for the pic dave...gib help just tired of tryin to fix the electrics when i can't tell whats new and whats old 'because the previous owner made such a "male genetalia" up of it with all his extra wires...was stood there for like half an hour the other day with a confused look on my face thinkin what the hell is going on here

[stormintrooper]

bump anyone?

[WiredbyWilson]

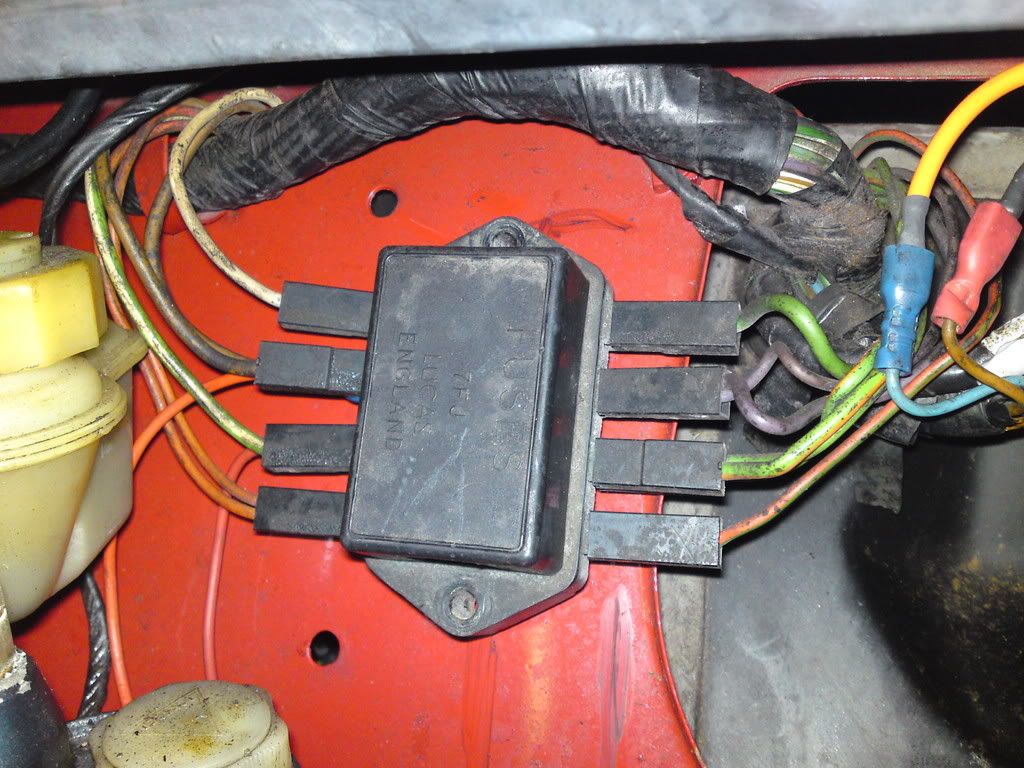

hope this helps

the red and orange wires on the left side dropping down are for my radio so you can ignore those. on the right the green wire with an orange tracer has two connectors, one with 2 wires and one with one.

Edited by Wilson1275, 06 January 2009 - 04:12 PM.

[Dan]

N is brown, same as in all the wiring diagrams.

Some terminals do have more than one cable fitted, as Wilson1275 shows above. As I said all wires of the same colour stay together.

Who's Dave?

[Bungle]

Who's Dave?

the guy with the TV channel that shows all the old top gear repeats

[stormintrooper]

haha..sorry dan...ment you...and cheers wilson your a great help...maybe now i can sort out why the alarm goes off every 5 minutes as im sure theres a short from some more recently added wiring
