15 replies to this topic

[1293sleeper]

im fitting my megajolt kit this friday and was wondering where people had fitted there edis unit and coil pack, pictures would be a really big help.

[mini93]

er there



mig bulkheads are useful!

[1293sleeper]

hm yeah im pretty sure thats inside my car as thats a huge weber box you've gto there

[Ouster]

Ta-da!

[miniJJ]

On the bulkhead, on a ally plate: (excuse the mess that is my engine bay)



Hope this helps... JJ

[Kerrin]

Coil pack on bulkhead as above.

EDIS is on driver side o/s inner wing behind washer bottle.

[1293sleeper]

the two above are where my fuel preasure regulator is i was going to mount the coil down on the bell housing and the edis unit on the side where later cars have the servo.

Edited by 1293sleeper, 05 May 2010 - 05:55 PM.

[1293sleeper]

also how easy where yours to fit and how long did it take?

[HARBER07]

Best picture I could find of mine. The EDIS is mounted behind my regulator, but it fell off in that picture. Hope it helps.

[Sammy D]

Mine is same as above. Except the edis is under the dash

[1293sleeper]

Mine is same as above. Except the edis is under the dash

didn't know you could put it inside that could help as i have spent a lot of time keeping my engine bay clutter free.

[Sammy D]

You put it where ever you like mate. As long as you have enough shielded wire to run between the VR and edis.

[mini-geek]

my EDIS is in the car and the coil pack is mounted to the transfare case like to old coil used to be mounted.

[l_jonez]

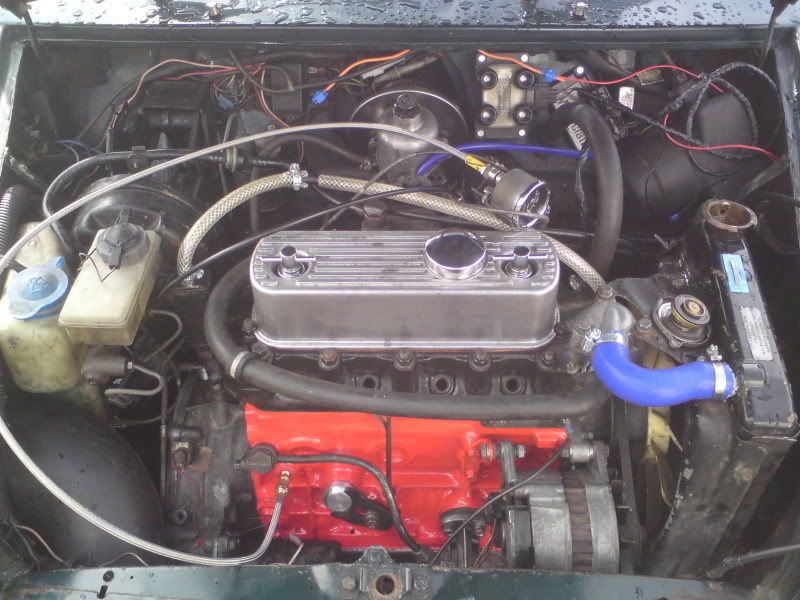

mine



edis on bulkhead, coil on old coil bracket

[Pooky]

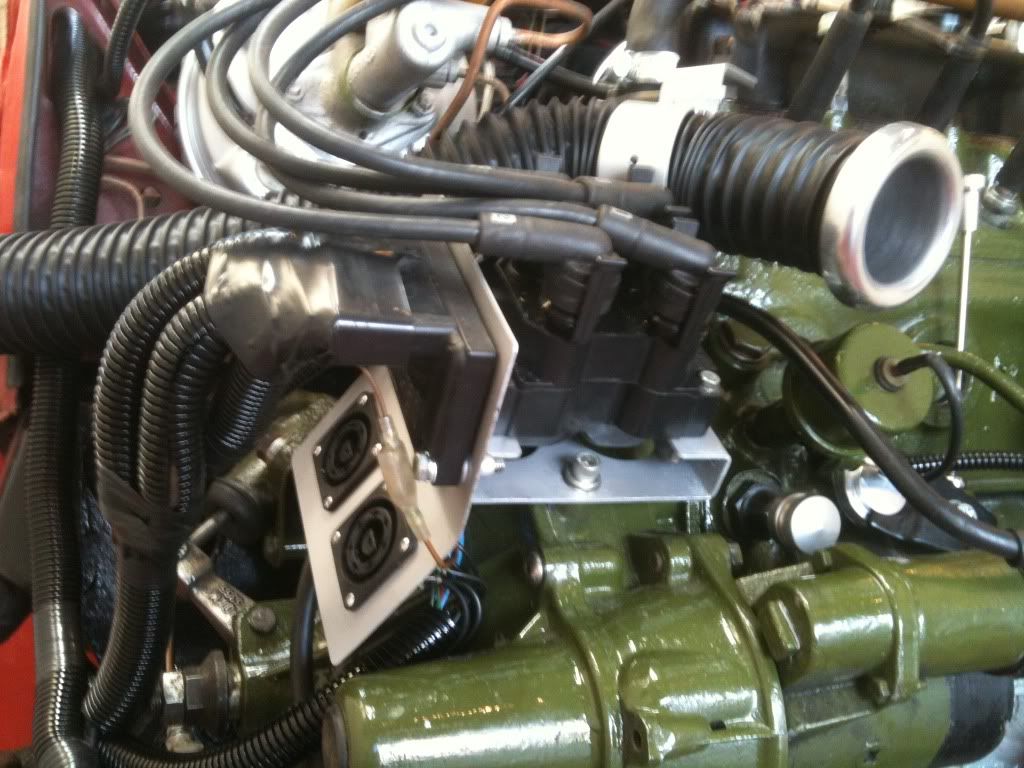

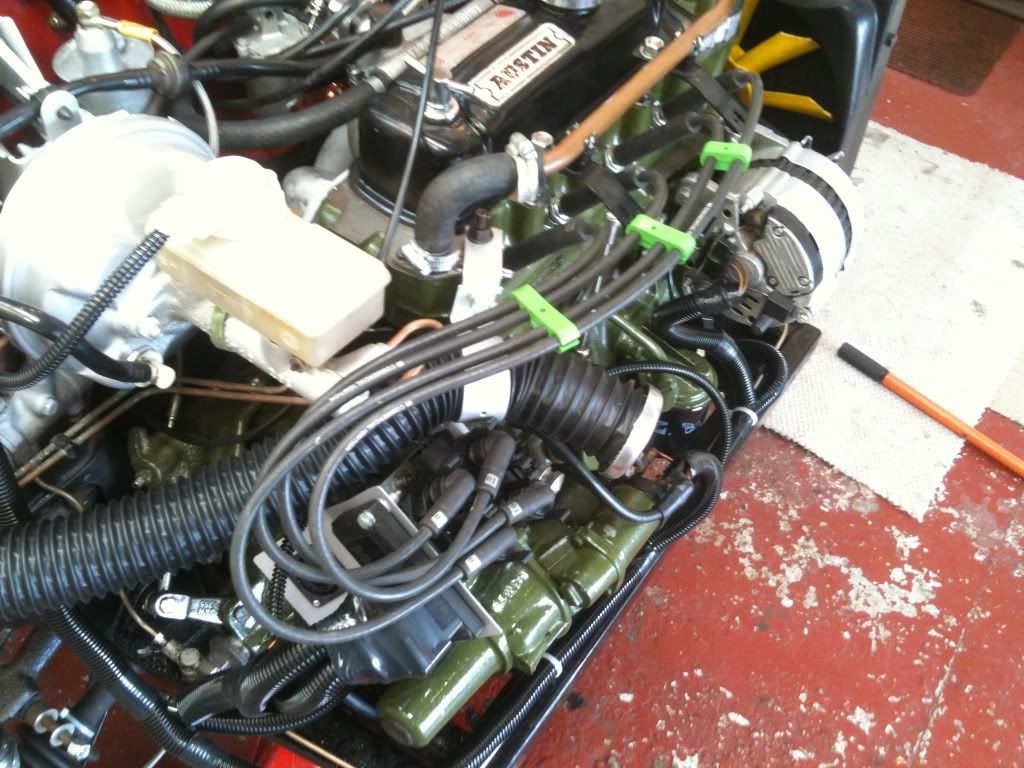

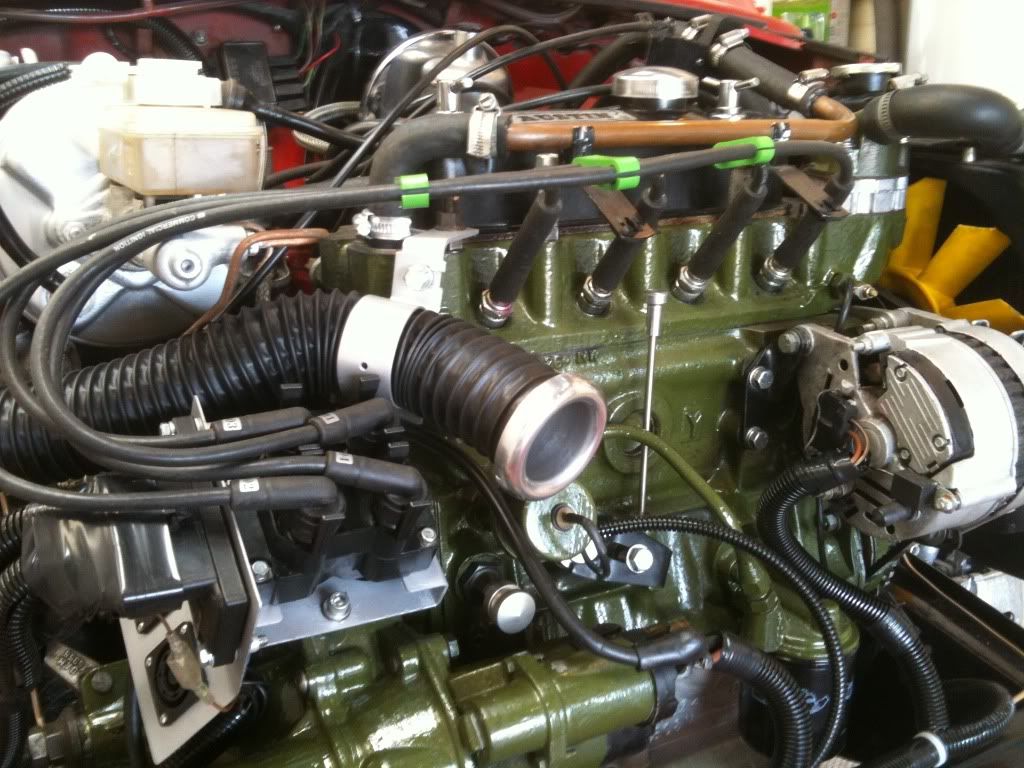

Custom made a bracket to fit on the transfer casing

Edited by Pooky, 09 May 2010 - 01:43 PM.
