Hello,
I need to know if any straight cut lay gear can be used with any straight cut gear set... My lay gear has broken but I'm unsure of the brand etc..I was planning on buying a new lay gear but don't know if it will be ok...
If anyone can help me identify the brand that would also help a lot, I will post some pictures ASAP
Obviously I will use one that is designed for the correct amount of syncros etc...
Any advice or help much appreciated. I am sick to death of this ear box now!
Andrew
Straight Cut Gear Box Problem! Broken Lay Gear....
Started by
A.Millican
, Aug 23 2012 05:15 PM
22 replies to this topic
#1
A.Millican
-
- Members
-
- 200 posts
Mini Mad
- Location: Margaret River, Australia
Posted 23 August 2012 - 05:15 PM
#2
A.Millican
-
- Members
-
- 200 posts
Mini Mad
- Location: Margaret River, Australia
Posted 23 August 2012 - 05:55 PM
#3
A.Millican
-
- Members
-
- 200 posts
Mini Mad
- Location: Margaret River, Australia
Posted 23 August 2012 - 05:56 PM
#4
mini13
-
- Members
-
- 3,810 posts
Up Into Fourth
Posted 23 August 2012 - 07:32 PM
count the teeth on each of the laygear cogs and the gear they mesh with, and then report back,
I have used this to find the ratio's in the past, which then gives an indication of what gear set it is.

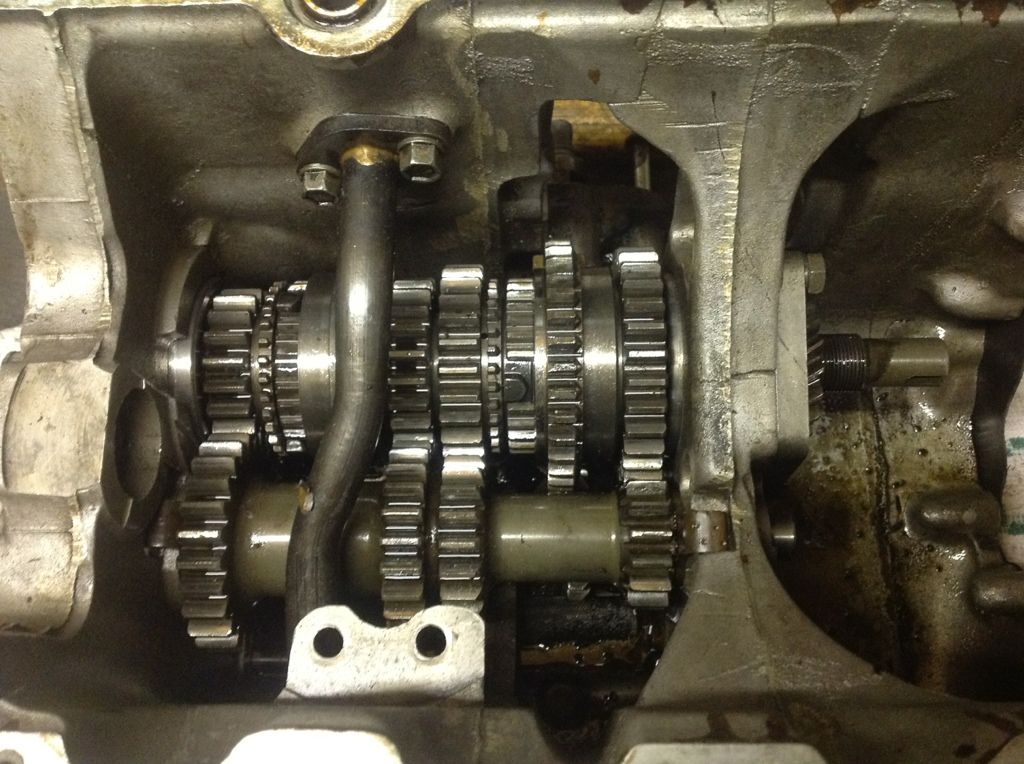

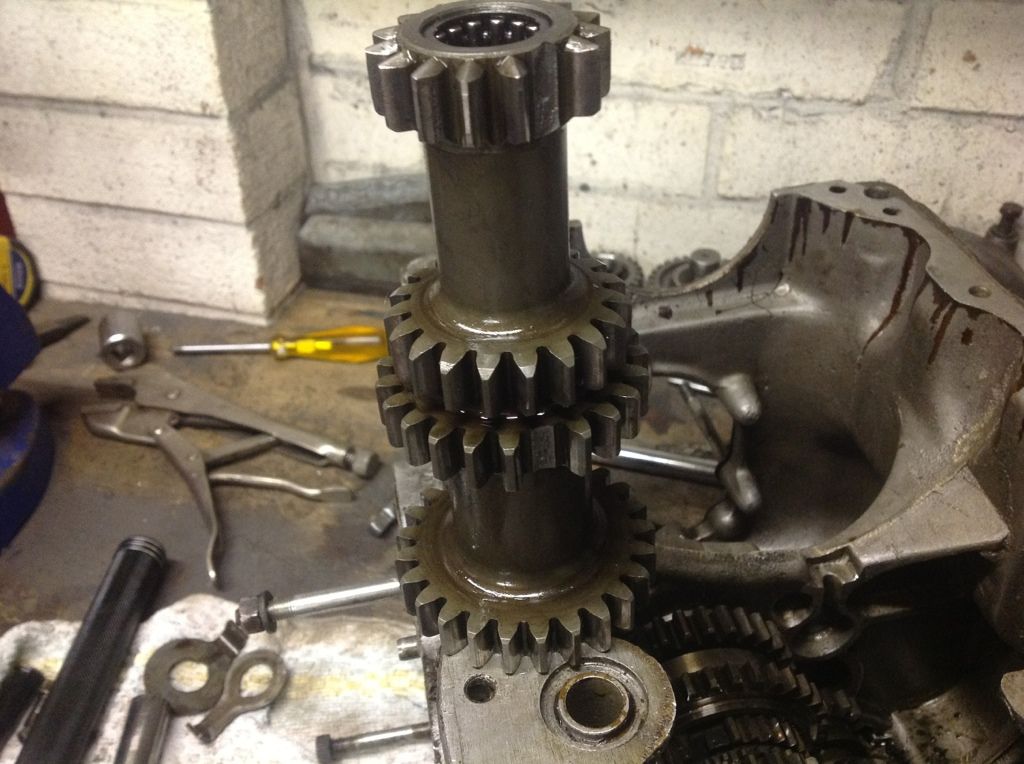

Also can ypu post a pic of the layshaft, I assume this is an A+ box, but best to check.
I have used this to find the ratio's in the past, which then gives an indication of what gear set it is.
Also can ypu post a pic of the layshaft, I assume this is an A+ box, but best to check.
#5
A.Millican
-
- Members
-
- 200 posts
Mini Mad
- Location: Margaret River, Australia
Posted 24 August 2012 - 09:29 AM
Ok,I will report back later on today. Ging to go and sort it out now
#6
A.Millican
-
- Members
-
- 200 posts
Mini Mad
- Location: Margaret River, Australia
Posted 24 August 2012 - 09:29 AM
Going*
#7
Sprocket
-
- Members
-
- 7,266 posts
Great on Injection faults
- Location: Warrington
- Local Club: Manchester Minis
Posted 24 August 2012 - 12:03 PM

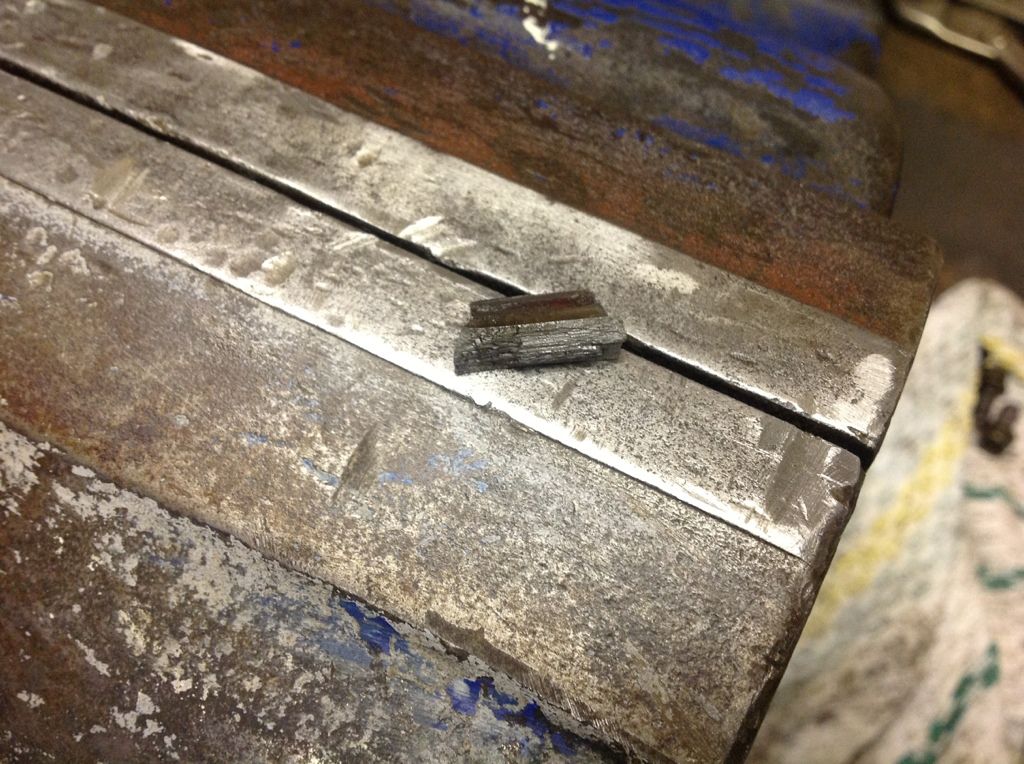

Always lock 1st and 4th gears when dismantling a gearbox, as the above failure (tooth breaking off) will result. I'm not saying that is what you have done, but it is all too familiar.
#8
mini13
-
- Members
-
- 3,810 posts
Up Into Fourth
Posted 24 August 2012 - 04:36 PM
Indeed, thats definatly worth a mention.
#9
Guess-Works.com
-
- Traders
-
- 19,838 posts
Gearbox Guru
- Local Club: Rugby Classic Mini Owners Club
Posted 24 August 2012 - 05:07 PM
Quick way is to count the number of teeth on the 1st gear and 1st motion (4th)...
If there's 31, then it's a clubman or 4 piece gearset as it's using the standard 1st gear, the 1st motion (4th) gear should have 20 teeth, unfortunately counting the teeth on the the laygear does not help much as most will have 15,19,23,25 teeth respectively...
If there's 29 on 1st and 19 on the 1st motion then it's a full 6 piece kit ( or ST kit ), these usually have the part number stamped on the laygear hence making it easier to identify.
It's more common to find the 4 piece kit in use in road boxes and club type competition cars, as it's a cheaper way of getting the straight cut close ratio gears.
Then it's just a matter of finding out the manufacturer, however looking at the picture I would say it is of tran-x origin or an evolution of that original design.
If there's 31, then it's a clubman or 4 piece gearset as it's using the standard 1st gear, the 1st motion (4th) gear should have 20 teeth, unfortunately counting the teeth on the the laygear does not help much as most will have 15,19,23,25 teeth respectively...
If there's 29 on 1st and 19 on the 1st motion then it's a full 6 piece kit ( or ST kit ), these usually have the part number stamped on the laygear hence making it easier to identify.
It's more common to find the 4 piece kit in use in road boxes and club type competition cars, as it's a cheaper way of getting the straight cut close ratio gears.
Then it's just a matter of finding out the manufacturer, however looking at the picture I would say it is of tran-x origin or an evolution of that original design.
#10
A.Millican
-
- Members
-
- 200 posts
Mini Mad
- Location: Margaret River, Australia
Posted 24 August 2012 - 07:23 PM
Hello, yes I did engage 1st and 4th but there was some damage on the lay gear prior to dismantling it. The teeth did break as I was undoing the nut. It was extremely tight...much tighter than any other gearbox I experienced.
I have counted the teeth and this is what the crack is..

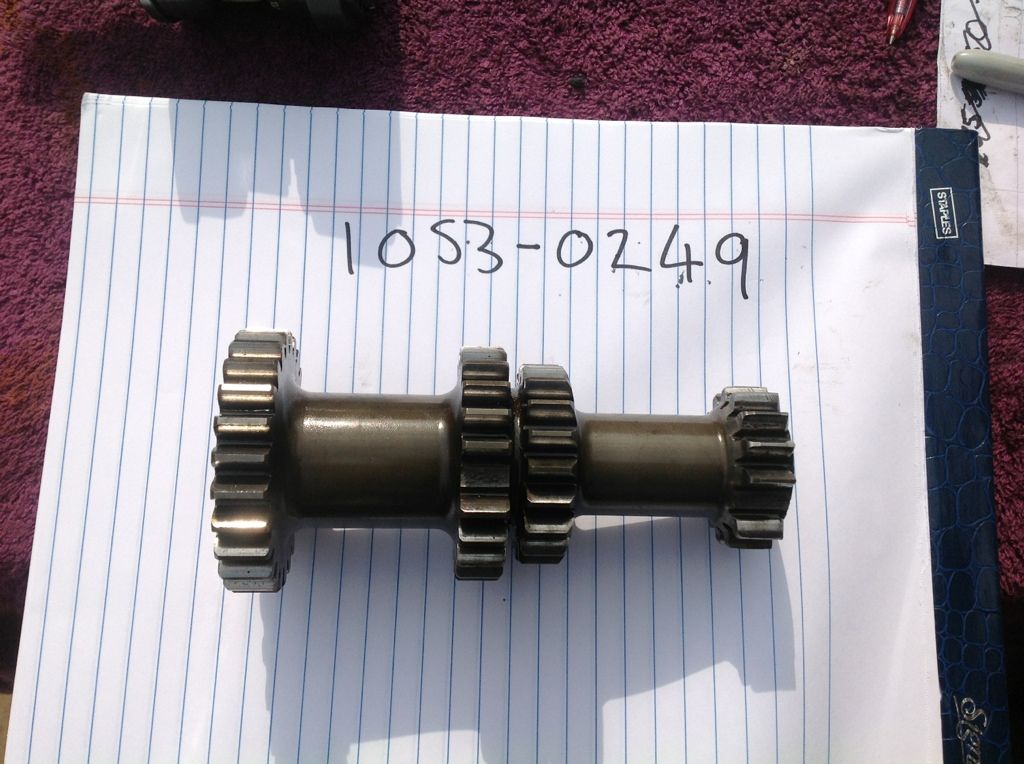

The Biggest gear on the lay gear has 25 teeth that engages with the gear set and that cog has 19 teeth
Second largest gear on the lay gear has 23 teeth, that engages with the gear set and the gear set cog has 22 teeth
The third largest gear on the lay gear has 19 teeth, that engages with the gear set and the gear set cog has 25 teeth
The smallest gear on the lay gear has 15 teeth, that engages with the gear set and the gear set cog has 29 teeth

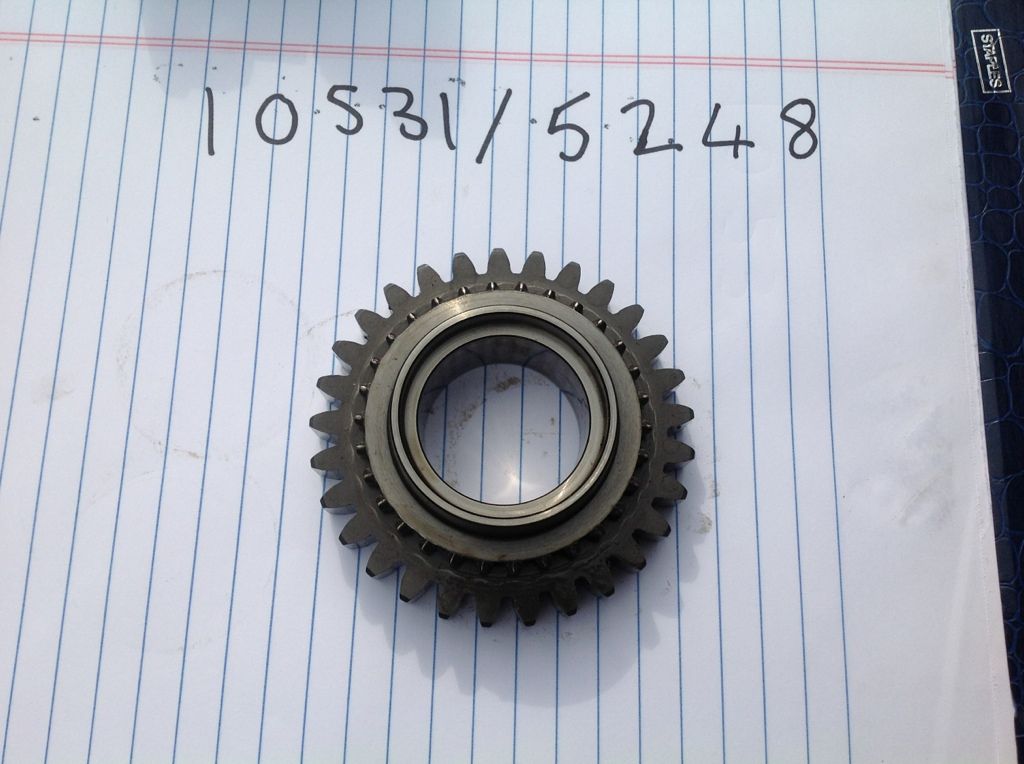

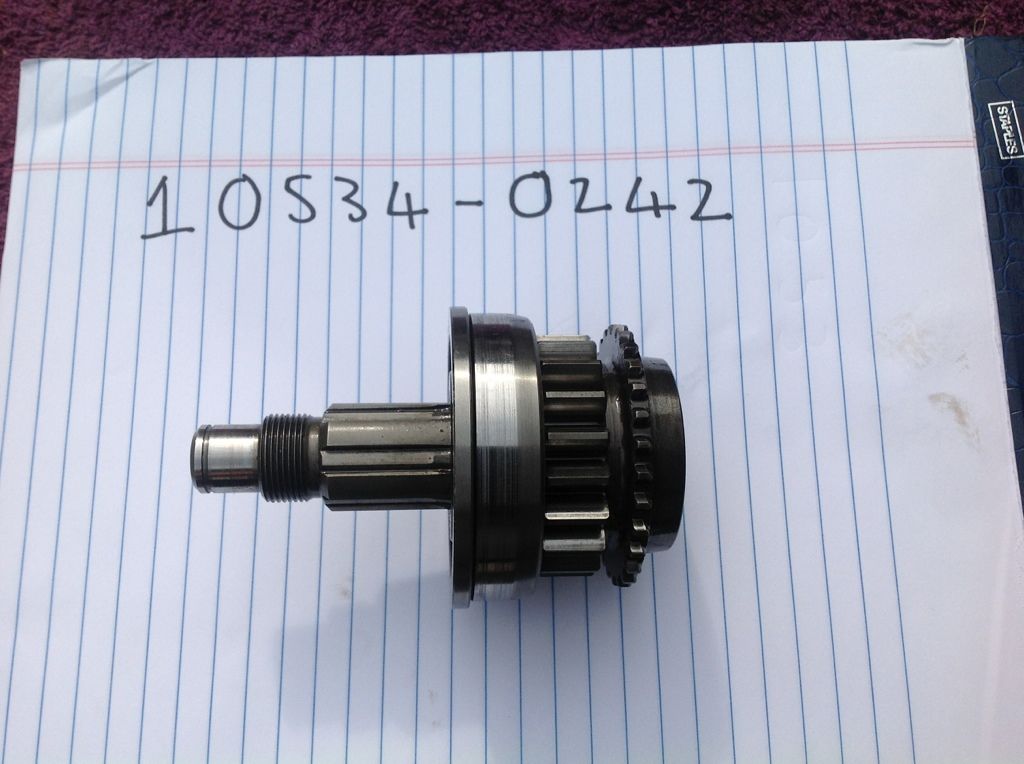

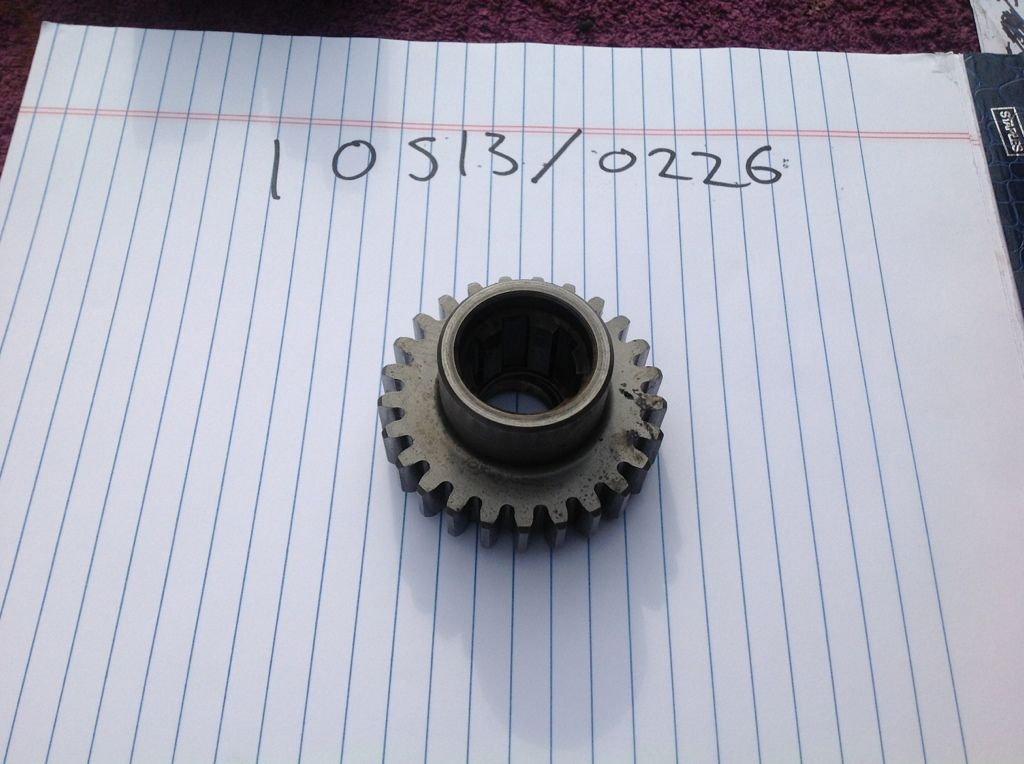

I have the part numbers from the gears. See pics below!
If you have any idea of the brand of the lay gear or an equivalent replacement please let me know. Thanks!
The part numbers are the numbers on the paper, cheers!
Andrew
I have counted the teeth and this is what the crack is..
The Biggest gear on the lay gear has 25 teeth that engages with the gear set and that cog has 19 teeth
Second largest gear on the lay gear has 23 teeth, that engages with the gear set and the gear set cog has 22 teeth
The third largest gear on the lay gear has 19 teeth, that engages with the gear set and the gear set cog has 25 teeth
The smallest gear on the lay gear has 15 teeth, that engages with the gear set and the gear set cog has 29 teeth
I have the part numbers from the gears. See pics below!
If you have any idea of the brand of the lay gear or an equivalent replacement please let me know. Thanks!
The part numbers are the numbers on the paper, cheers!
Andrew
#11
Guess-Works.com
-
- Traders
-
- 19,838 posts
Gearbox Guru
- Local Club: Rugby Classic Mini Owners Club
Posted 24 August 2012 - 08:12 PM
It's a full 6 piece kit and is correct for ST ratios... I'm afraid I don't recognise the part numbers, your most likely option for a match will be this
http://www.minispare...C-22A1737A.aspx
otherwise you'll have to start looking in the autojumble and ebay for secondhand/nos replacements.
http://www.minispare...C-22A1737A.aspx
otherwise you'll have to start looking in the autojumble and ebay for secondhand/nos replacements.
#12
A.Millican
-
- Members
-
- 200 posts
Mini Mad
- Location: Margaret River, Australia
Posted 24 August 2012 - 08:35 PM
Ok, and should that fit and mesh nice with the gears? The part numbers are not stamped on they have been put on with etching tool and just handwritten. Don't know if this will help.
Cheers Andrew
Cheers Andrew
#13
A.Millican
-
- Members
-
- 200 posts
Mini Mad
- Location: Margaret River, Australia
Posted 24 August 2012 - 08:36 PM
by the way, what is a ST RATIO?
#14
Guess-Works.com
-
- Traders
-
- 19,838 posts
Gearbox Guru
- Local Club: Rugby Classic Mini Owners Club
Posted 24 August 2012 - 08:38 PM
Special Tuning...
As they have been engraved on, this would suggest that the gears are Jack Knight.... look for JKD engraved on there too....
If they are JKD, it's a long shot that the Minispares one may work, if it does not, then you only have to buy the 5 other gears to replace the lot....
As they have been engraved on, this would suggest that the gears are Jack Knight.... look for JKD engraved on there too....
If they are JKD, it's a long shot that the Minispares one may work, if it does not, then you only have to buy the 5 other gears to replace the lot....
#15
A.Millican
-
- Members
-
- 200 posts
Mini Mad
- Location: Margaret River, Australia
Posted 24 August 2012 - 09:09 PM
There is no JKD anywhere on any of the gears.
Can you give me a list of possible company's? I will contact them and see if any part numbers match up.
Cheers Andrew
Can you give me a list of possible company's? I will contact them and see if any part numbers match up.
Cheers Andrew
