10 replies to this topic

[hoody99]

Hi folks I have looked and looked at the Haynes I have but am stumped with the following

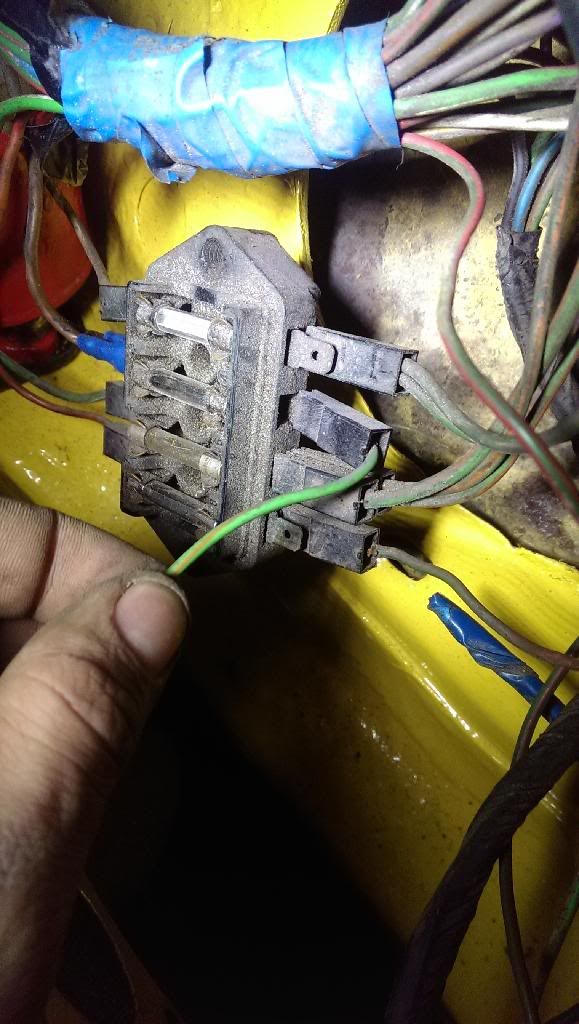

green with orange trace coming off fuse point 4 ? Any guesses

haynes says it should be a purple wire with no trace going either to headlamp flasher switch or brake failure test switch and warning lamp ( which I don't have) ???

Also

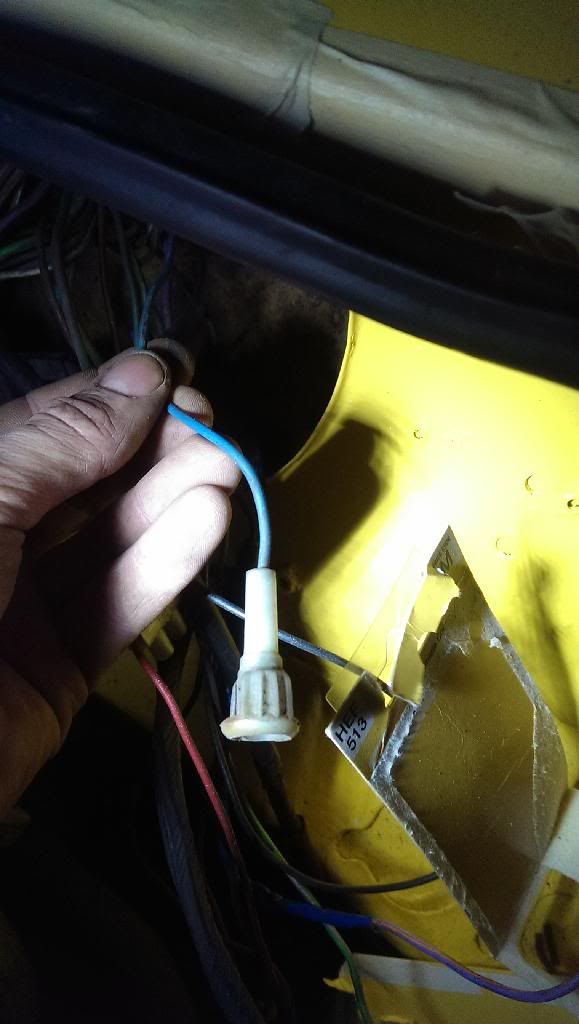

blue with no tracer and one side of an inline fuse ???

And

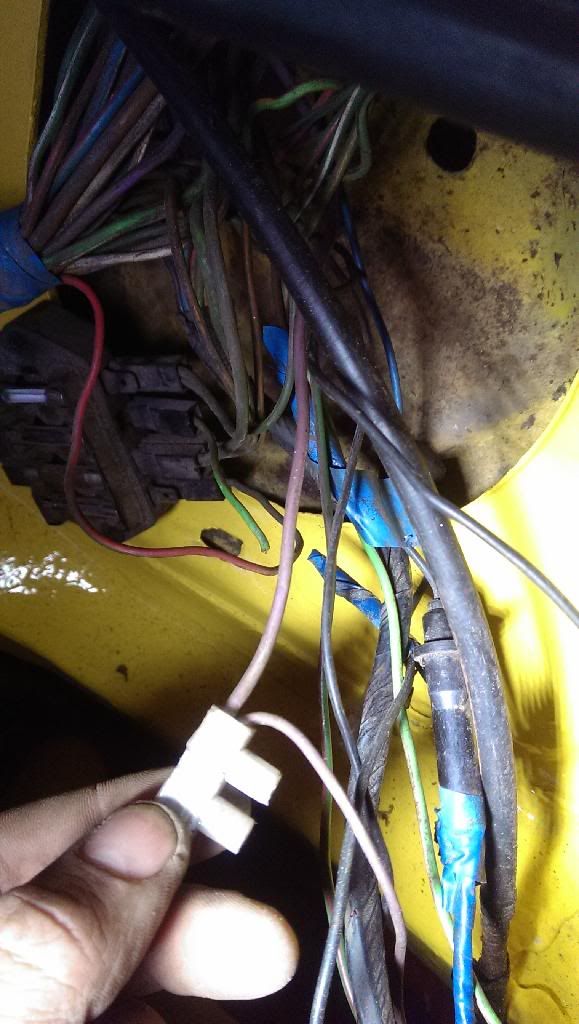

purple with no tracer ???

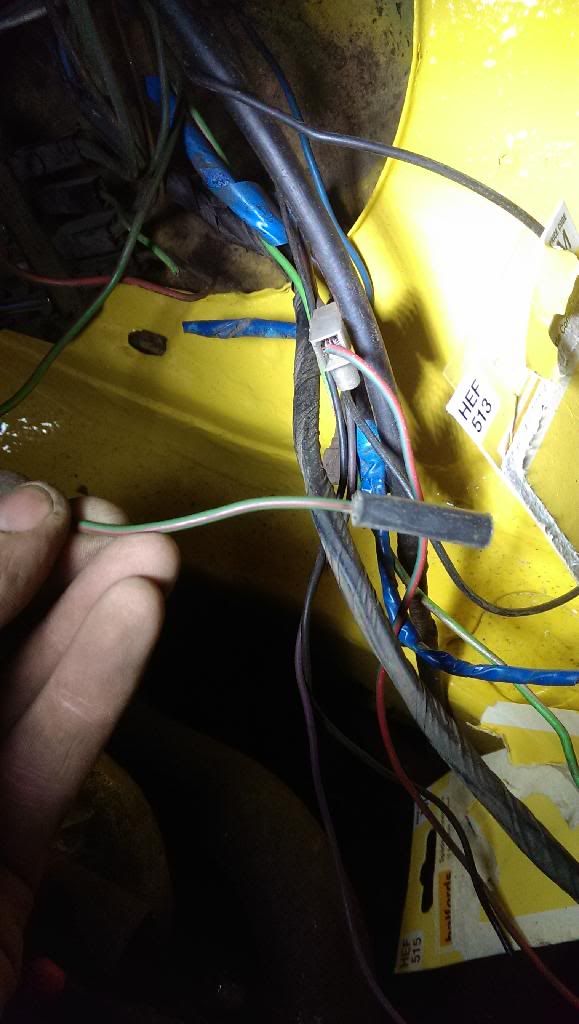

green with brown tracer could be red cant remember ??

all come through the bulk head or at least they do now!

These to

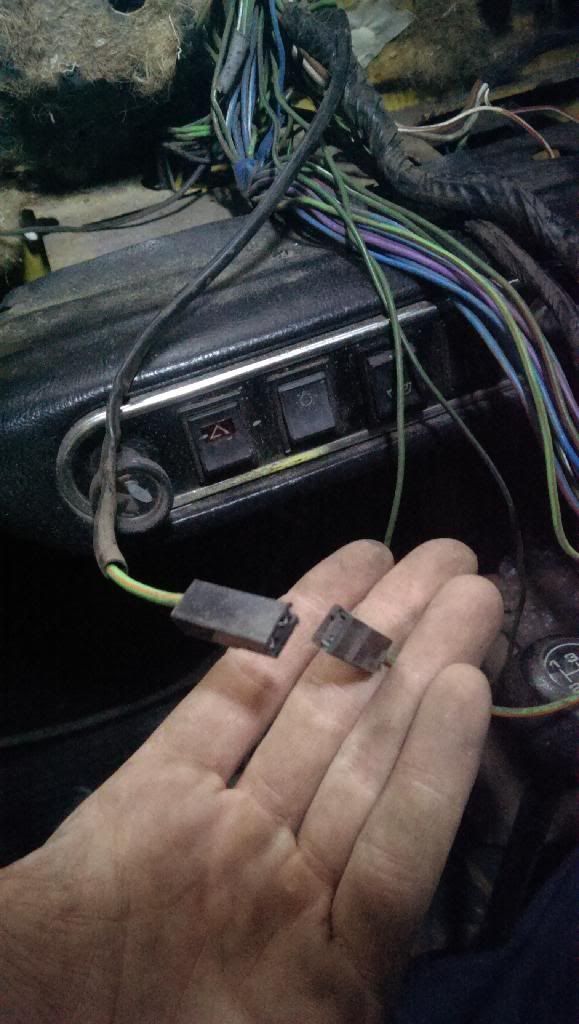

green with orange tracer ? One comes from the main loom through the bulk head with a black sheeth on it and one comes from the steering collum loom

and last one

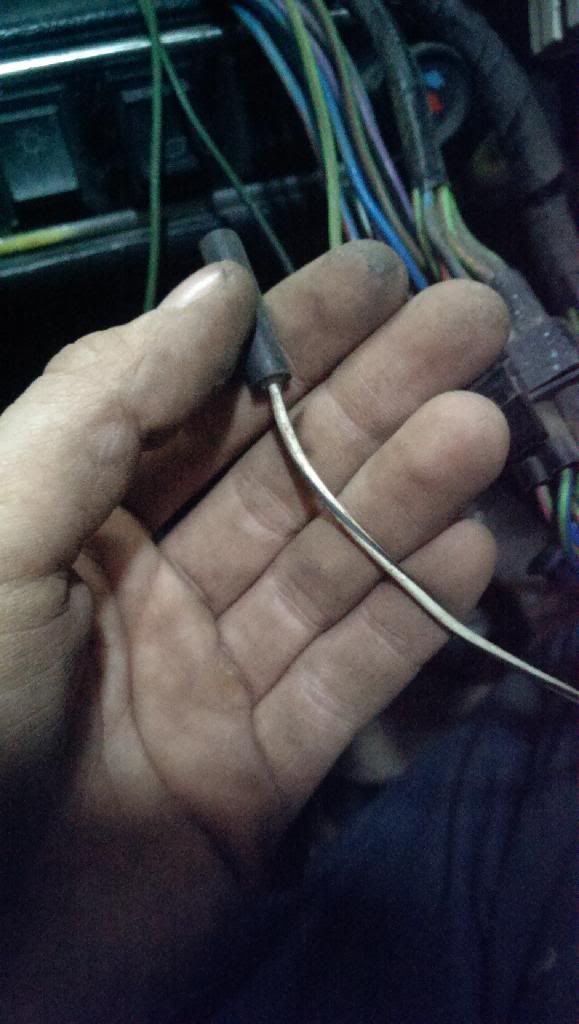

black with white tracer but correct me if wrong is this not for the rev counter ? When fitted?

Cheers in advance any help is appreciated. This has been racking my brain for a few days now as I'm hopeless with looms lol

[mad mk1]

This may be of some help mate,


http://www.autospark...content_page=48


Simon.

[Gremlin]

Green and orange does the heater fan motor as well as other things, the purple going into the choc block, for a start launch that choc block as far as you can and connect it properly - crimp or solder, not sure what the blue is, I'm pretty sure green/brown is reversing light, white/black is tacho so if not fitted do not worry, just make sure it will not short, and the two green/orange in the second to last pic will be the heater fan for one and POSSIBLY the indicator flasher can feed but don't quote me. Hope this helps, does anything actually work!

[hoody99]

So far the a fine turns but not fully rebuilt enough to start yet and I have rear side lights and dash light ??

[KernowCooper]

All the wiring colours are in the FAQs here listing by colour the circuit http://www.theminifo...ng-codecolours/

[hoody99]

Yeah seen that but still no use as 2 of my wires ain't listed lol thanks tho

[Gremlin]

If the wire colours are not in Kernows guide, then no-one on this forum can help unless the previous owner or people have worked on it help.

Although if you tell us where the mystery wires go we will probably be able to help

[KernowCooper]

Ok so they are non standard wires ? without tracing it its going to be difficult to say,

[hoody99]

Cheers guys leave that with me

[zerobelow]

On other cars, I've had success using a telephone tone tracer to find where wires go. You hook one end up to a wire, and the other end, will make noise when it gets close to that wire. On my ford van, it had 4 unused switches on the dash as a factory option, but the output leads in the engine bay weren't the same colors as the manual said (they had changed the colors that year,but not updated the manual until the following year). I was able to find the correct bundle, then from there, to find the wire in the bundle, by waving the wand around.

[hoody99]

Got it sorted folks cheers tho think I.Was just having a blonde day ha ha all makes sence now
