[Anthony]

Hello,

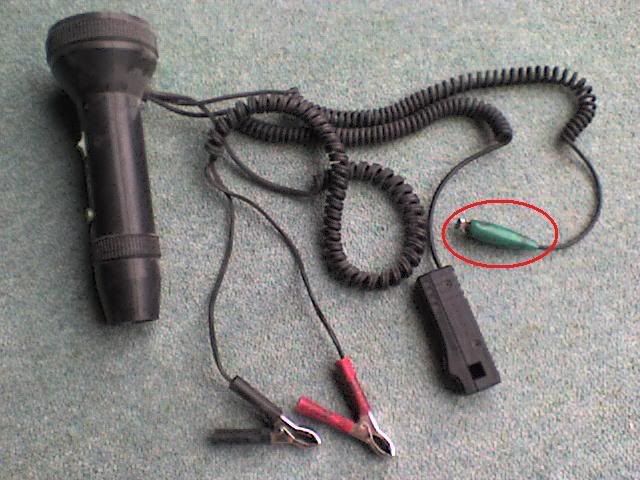

Can anyone help me identify this connection circled in red. It is a crocodile clip type connector.

It is an Optilux branded meter if that helps.

Thanks,
Anthony.



(C**p pic off my turd phone)

Edited by Anthony, 19 April 2008 - 11:42 AM.

[Ethel]

You need to upload your picture to the web on Photobucket or similar first.

[Anthony]

Well ill try and describe it.

It has 12v battery connectors

Also a clip type to go round spark plug no.1

Also this crocodile type with shrouding that I do no know where it goes.

Any ideas?

[Anthony]

You need to upload your picture to the web on Photobucket or similar first.

Oh right, ill do that now

[lrostoke]

If its anything like the multimeter I use, the extra clip goes on the negative terminal of the coil...

its used to get the signal from the ignition system for measuring dwell, also gives rpm as well

[Anthony]

If its anything like the multimeter I use, the extra clip goes on the negative terminal of the coil...

its used to get the signal from the ignition system for measuring dwell, also gives rpm as well

Cheers pal, the pic is up now if you could confirm that?

[lrostoke]

the meter is nothing like , but it would make sense it clips onto the coil.

[Anthony]

the meter is nothing like , but it would make sense it clips onto the coil.

Thanks Ill try that then.
