[Red Riley]

I needed to fill in the hole in the floor in what was now the front compartment. I started by bending the front part of the rear seat pan down to make a front cover and box in the heel board. Then I cut up more of the good heavy steel from the old garden trailer and built a floor in five sections. I decided to use the inside of the front grill and valance panel as my attachment point and bring the floor down from there as sort of a skid plate. That's the bottom of the trailer buttoned up. I accidentally welded the shell to the frame in a couple of places just to make my life harder.

















Edited by Red Riley, 08 October 2020 - 08:24 PM.

[Red Riley]

I don't need the grill opening, so time to button that up. This method is used to convert a standard Mini front panel into an Elf/Hornet front, except in this case I'll be leaving it closed up.













[Red Riley]

Many hours of seam welding, rust-proofing, and seam sealing later. Unfortunately I left the rust converter on and didn't get it primed for a while. I had to take most of it back to metal and do it again. Don't leave the rust converter on without priming over it! It rusts.















Edited by Red Riley, 08 October 2020 - 02:46 PM.

[Red Riley]

My plan involved keeping the parcel shelf intact since that's what the boot lid hinges mount to. So I needed to bring this edge all the way around. Then I needed to make a rain gutter. I ended up making some special tools to do the bending. I really wished I had a shrinker-stretcher for this job. But I made it work with what I had. It was an ugly process but I got there in the end.















[Red Riley]

After some pondering, I decided that the flat boot floor was too floppy for my tastes. If I had had access to a bead roller I probably would have put some beads in the floor when I made it, but it needed something. So I decided what it needed was an inset box to make it more rigid. It would also give me a place for the big red beer cooler. At this point I didn't have enough steel left over from the garden trailer or the gov't surplus filing cabinet to make a box, so I decided to use this large sheet of flat metal that I found next to the road. I don't know why people leave these things just lying around. I wasn't sure what kind of metal it was, so I decided to pass on the welder for this part. I got some aluminum angle from the farm store, and pop-riveted it all together, then cut an appropriate sized hole in the floor and riveted it in. I seam sealed it and threw some paint on it at some later point. The cooler fit perfectly. Too bad I didn't think about trying it with the boot lid on. Hindsight is 20-20.









[Red Riley]

The bonnet and boot lid that came with the car were in pretty poor shape. The boot lid had a huge patch of bondo attempting to fill a massive dent, and the bonnet was so scary and twisted it was giving me nightmares. When I found the pair of gray front wings that I used, I had also picked up a better boot lid that came from a Wolseley Hornet, so I had that covered. The bonnet came from the shed of the person who originally sold me the Elf. It started out being picked up by courier in Minneapolis, then when the guy drove directly into a tornado on the toll road in Indiana, ended up inside the car destined for the crusher at a salvage yard in northern Indiana. The driver eventually was able to extricate it from the salvage yard, then carried it with him on a Greyhound bus to South Carolina, and eventually I drove two hours to his home and picked it up from him. All at a cost of 60 bucks. It was still in better shape than the bent one that I had.



Anyway, I needed a way to hold the bonnet and boot lid up, so I made these. The boot lid on the Elf and Hornets has a spring to hold them up, but the one I had was not usable, so I just made a prop rod like the bonnet one. It works.

















[Red Riley]

At this point the majority of the welding and major assembly was done, with the exception of the top, so I thought I would get the frame under, get some primer on it, then throw some trim on and see how it would look. I even wired the lights for good measure.

















[Red Riley]

I had thought long and hard about how to finish the top, and finally decided to just go for it and try to do a fiberglass dome in one shot, without building a mold. So I started with insulation foam glued up. Way too much. Lots of filing and shaping later I had what I thought would work. I had done a lot of research online and thought that fiberglass directly onto the foam was the way to go. It might have worked if I'd had the right kind of foam. Nope. The first attempt could have been used as a prop for a Flintstones movie.















So, second try, this time I reshaped the foam and covered it in Bondo, then painted it in several layers of primer. I put 4 layers of glass cloth on and it came out pretty darn good. After I trimmed up the edges and dug out the foam, I had the final top/dome/roof. I used panel bond adhesive and used all of my clamps. By the way, this blue no-mix skim filler is crap. Don't use it. I wish I had sanded it all off before I painted. Oh well, live and learn.















[Red Riley]

Okay, before I get to the end of this build, here is the towing setup. I heard of a guy in Texas making a batch of these Class II 1-1/4" receiver type hitches for Minis, and I asked him to make me one. I'm sorry, I can't remember who it was. Does anyone know?

Since the Elf is about ten inches longer in the rear than a Mini, I knew I would have to make some adjustments. I know there is some argument about the proper way to put a hitch on a Mini. This one attaches to both the body and to the subframe, so it should equally piss off both camps. I look at it as adding another structural element to the subframe, tying it into the body at two more points. Anyway, since the receiver sits forward of the rear valance, it's almost invisible when the draw bar is off. I had a trailer shop make me an extended draw bar, and also added a second hole so it has two pins holding it on. I was slightly worried about the extra length causing some kind of weirdness when towing, but the trailer tongue is so short and the trailer follows so close that I've never felt any evidence of the tail trying to wag the dog. It works really well.

















As for the wiring, I used a 5 wire trailer harness and tied into the stock Elf lights, plus added the side markers and the headlights into the running lights. I modified a pair of cheap ebay halogen headlight kits to use standard single filament taillight bulbs. I also added a third brake light strip with a blinker module so it pulsates when I hit the brakes. If you ever need to add trailer lights to a car, this module from e-Trailer works really well. https://www.etrailer...sha/119177.html It runs the trailer lights off of an independent fused circuit so they don't pull current from the car lights.



 modulite.jpg   123.68K   0 downloads​









Edited by Red Riley, 31 August 2021 - 01:15 PM.

[xrocketengineer]

Awesome build! Great job!

[Red Riley]

I wanted to run the trailer with similar wheels to the car, and I found these 12 inch Minilites for super cheap. I know I bought them off of someone on the Mini Mania Forum, but like a lot of the parts for this project, I had them sitting around for so long I can't remember anymore who I got them from. They had some bad curb rash, and I thought I could get them presentable enough to just repaint them, but I wasn't happy with my attempt to sand out the rim damage. I took them into a local wheel repair shop and they did a really nice job welding up the rims and powder coated them. The color isn't a perfect match to the Superlights on Kreacher, but they look pretty good. I had this brand new set of 12 inch Yoko A539s that I had bought specifically for the trailer that had been on the shelf for probably almost ten years. They matched the 13 inch ones on the car at the time, but now I have Nankang AS-1s on the car. Oh well, they're pretty dang nice for trailer tires.













[Red Riley]

After spending a considerable amount of time with the hammers and dollies, and doing more welding to close up pin holes and gaps, I had it to a point where I started doing some surface filling. I have to say I'm pretty damn proud of how close I was able to get it to being smooth. I spent the most time getting the transition on the sides between the round front wings and the flatter quarters to blend together. When you look at one of these cars closely, you realize that it is wider in the front than in the rear, and the shape is very different front to rear. Getting that transition right took some work. The heaviest areas of filler ended up around the front corners where I had to combine 4 or 5 panels, and the area where the top of the wings and the scuttle come together. Even with all of that, I don't think there is more than about 1/8 inch of filler anywhere. Not bad for a beginner.

I'm running a set of Mini Special wheel arches (the rear ones) and I wanted to have the sidelights above the wheels, so I had to cut those in as well.



Once I had it as close as I could get it, I dropped it off with my friend who is the Auto Body instructor at a vocational high school here. For the cost of paint and supplies, the students took it on as a class project. I think they did an awesome job on it. Better than I could have done it, for sure.





















Edited by Red Riley, 10 October 2020 - 04:22 PM.

[Red Riley]

Over the course of collecting parts and putting this project together, I had come up with a few finishing touches to take it over the top. I wanted to do a custom name emblem, and I thought about just making a sticker, or trying to do some custom painting, or something. I ended up designing a name badge and having it cut out of chrome faced plastic. It turned out pretty good.









Here in the colonies, most states allow the use of original year plates on old cars. I run a vintage 1968 plate on the Elf, and I wanted the trailer plate to match. I already had a permanent trailer registration but I didn't want to use the ugly new style plate. I found a really great company that does authentic reproduction license plates for collectors and the TV and movie industry. They are https://www.licenseplates.tv/ I had them put the new trailer registration number on a repro 1968 SC trailer plate. I can't imagine anyone ever checking the plate since South Carolina doesn't even require trailers to be registered in the first place, (yeah, I know) but if it's ever checked, the number is valid. And it looks cool. Boom.







[Red Riley]

It just so happened that the Charleston British Car Club's annual show was the day after I got the trailer back from the paint shop, so I called up my neighbor Richie Hartley and he helped me throw it all together in a couple of hours. It's nice to have an extra set of hands to keep the cussing to a minimum when trying to mount the boot lid and bonnet. I already had the wiring mostly run, so it didn't take too much work to get it road-worthy. So we made it to the car show. Woohoo!













[Red Riley]

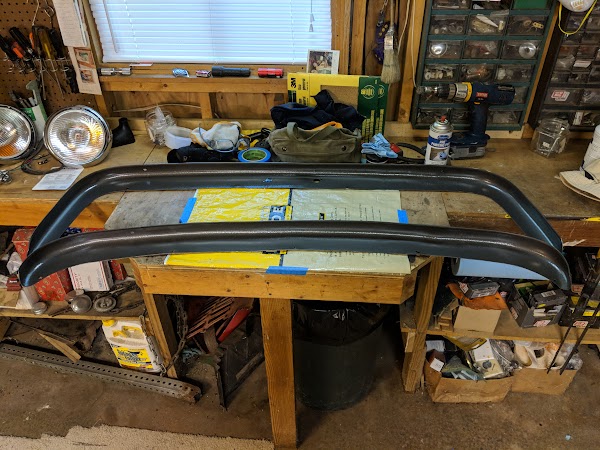

I still needed to finish up the interior. I made a mount for spare tire in the front and put in some mats and carpet. Then mat and carpet in the boot. I added some tie-downs in the boot and came up with a configuration for a smaller cooler and my spare parts/cleaning supplies bucket. I also black painted behind the non-functional side grilles and came up with a filler panel to seal the center grille opening in the bonnet. The bumpers were pretty rusty on the backs, so I took them off and de-rusted them and gave them a couple coats of hammerite inside. I found these original Desmo towing mirror extensions on EBay and put them on Kreacher. They work really well, and actually make the wings mirrors very functional. It makes it much easier to back up the trailer when needed. Other than a few tweaks here and there, tidying up the wiring, and fine tuning things like the remote bonnet latch and boot lock, it's pretty much done for now.



























Edited by Red Riley, 10 October 2020 - 04:17 PM.
