Not a huge update as I have very little free time as usual, but I decided to actually put a few hours aside to do some bits for my own car for a change.
Started making a plenum chamber. It was initially going to be aluminium, but due to the long runners I plan on using I decided it needed to be lighter, so I'm going with carbon fibre.

First job was to make a foam mould.



">



Then made an ally plate that will be wrapped inside as part of the mould. This will allow the runners to bolt to the back & be removable and the throttle body.



">



This is how the two parts will fit together.



">



">

[Turbo Phil]

We'll the human CNC machine (my Dad) got busy on the lathe yesterday and made me this adaptor for the end. I'm pleased with the result.



Phil.

[Turbo Phil]

One step nearer. The carbon plenum is now almost complete,







Edited by Turbo Phil, 15 March 2015 - 08:28 AM.

[Turbo Nick]

Looking good chap!

[Fast Ivan]

Nice bit of machining that. So what does the carbon plenum bring to the party Phil?

Edited by Rob Mac, 15 March 2015 - 10:04 PM.

[Gr4h4m]

Looks great

[Turbo Phil]

Nice bit of machining that. So what does the carbon plenum bring to the party Phil?

The main function of the plenum is to equalise pressure a cross all inlets for more even distribution. As it's a 7 port I will have a single runner for each intake valve.

Phil.

[Turbo Phil]

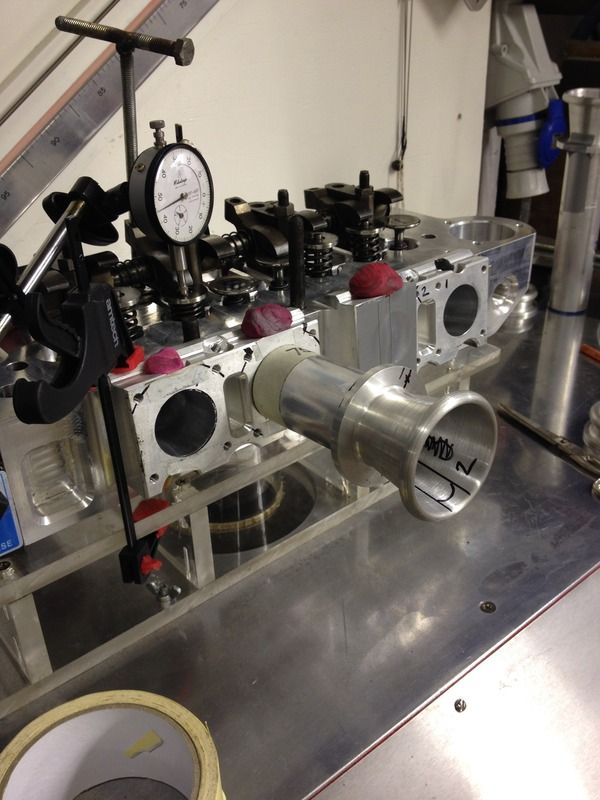

I've been doing a little bit of tinkering with the SC 7 port head on the flowbench lately. It flows well off the shelf but with a little work so far I'm getting a 4% improvement above 0.350" with no loss of flow at lower lifts. I might quit while I'm ahead as it's a rather expensive experiment if it goes wrong ! Lol
The manifold is in production at the moment and I'll get some pictures up once it's done.


Phil.

[johnR]

That head has a 30's Bugatti look about it - can't wait to see more progress.
JohnR

[Turbo Phil]

Still on the flowbench, a few more improvements made. Getting there slowly, very slowly ! Lol

[Gr4h4m]

Toot toot

[coopdog]

Awesome phil, can't wait for some real updates ;)

[DeadSquare]

It's been a long time ! Got 26cc from the chambers. What a nerve racking job it was knowing one slip with a carbide on aluminium could make a real mess, but thankfully my years of practice paid off !

Phil.









It's been a long time ! Got 26cc from the chambers. What a nerve racking job it was knowing one slip with a carbide on aluminium could make a real mess, but thankfully my years of practice paid off !

Phil.









If you had taken the block to Bingly with you, you would have known that the head didn't fit before you bought it. !

[Baldspeed Racing]

why quote a very old post?
